J20063+1743
Culpan hotsd
χ²/N = 0.98
Spectrum
shaded: the intervals the fit used · │ a cancelled pixeldrag on either panel to zoom · dbl-click or Esc to reset · arrows to pan
The whole reduced spectrum above, the region marked on it below. Shaded bands are the intervals the fit used; a tick under the axis marks a pixel the rejection mask cancelled.

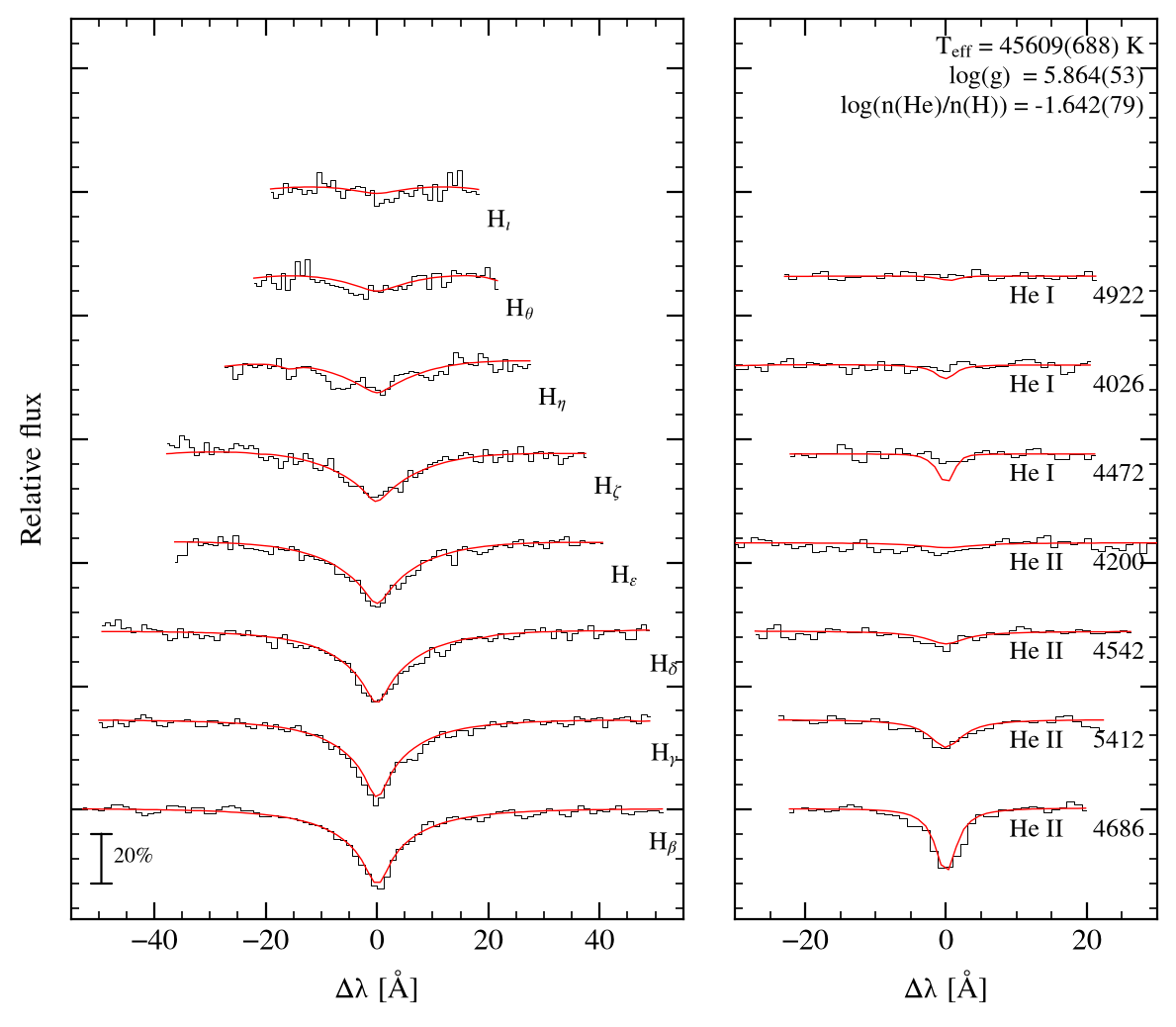

Line-profile fit — Bamberg
Results and provenance
Fit — Bamberg
| Teff [K] | 45609 ± 688 |
| log g | 5.864 ± 0.053 |
| log n(He)/n(H) | -1.642 ± 0.079 |
| reduced χ² | 0.982 over 747 points |
| radial velocity | -63.0 km s−1 |
| resolution (FWHM) | 2.00 Å |
| lines fitted | 15 |
| grids | HE-0.041.fits HE-0.125.fits HE-0.300.fits HE-0.550.fits +9 more |
| fitted | 04/09/2026 19:10:29 |
Observation
| source file | spec-100970-60464-63050394876988880.fits |
Gaia astrometry
| Gaia DR3 source | 1821852013752647680 |
| parallax [mas] | 0.8741 ± 0.0328 |
| G | 15.213 |
| BP − RP | -0.128 |
| Gabs | 4.921 |
| μα [mas/yr] | 1.541 |
| μδ [mas/yr] | -15.230 |
| RUWE | 1.044 |
| l, b | 57.391, -7.657 |
| selection | f_plx |
Fitted lines
| line | λ [Å] | shift [Å] | continuum at | ±avg | fitted over |
| Hβ | 4861.32 | -1.02 | -40.0, 40.0 | 5.0 | -45.0, 45.0 |
| Hγ | 4340.46 | -0.91 | -40.0, 36.8 | 4.5 | -43.0, 43.0 |
| Hδ | 4101.73 | -0.86 | -40.0, 31.6 | 4.2 | -43.0, 43.0 |
| Hε | 3970.07 | -0.83 | -28.0, 30.0 | 4.1 | -30.0, 35.0 |
| Hζ | 3889.05 | -0.82 | -20.0, 26.2 | 4.0 | -31.8, 32.0 |
| Hη | 3835.38 | -0.81 | -20.0, 14.6 | 4.0 | -20.7, 21.8 |
| Hθ | 3797.90 | -0.80 | -16.0, 16.0 | 3.9 | -15.6, 16.7 |
| Hι | 3770.63 | -0.79 | -13.0, 13.0 | 3.9 | -11.7, 11.6 |
| He II 4686 | 4685.70 | -0.98 | -11.9, 11.9 | 4.9 | -15.0, 13.8 |
| He II 5412 | 5411.52 | -1.14 | -15.0, 15.0 | 5.6 | -15.0, 15.0 |
| He II 4542 | 4541.59 | -0.95 | -15.0, 20.0 | 4.7 | -20.0, 20.0 |
| He II 4200 | 4199.84 | -0.88 | -23.5, 33.8 | 4.3 | -20.0, 20.0 |
| He I 4472 | 4471.60 | -0.94 | -15.0, 15.0 | 4.6 | -15.0, 15.0 |
| He I 4026 | 4026.29 | -0.85 | -24.2, 15.0 | 4.2 | -15.0, 15.0 |
| He I 4922 | 4921.93 | -1.03 | -15.0, 15.0 | 5.1 | -15.0, 15.0 |
Spectral energy distribution
Teff 45609 K · log g 5.864 · E(44−55) 0.250 · χ²r 0.86 over 41 bands
distance 1144 pc · parallax 0.8700 ± 0.0300 mas (3%) · R 0.1333 +0.0054 −0.0050 R☉ · M 0.474 +0.071 −0.062 M☉ · L 69.3 +5.9 −5.3 L☉
Photometry against the model, with the residual beneath it in units of the error. The horizontal bar on each point is the passband, not an error; a hollow point was not fitted and the tooltip says why. Drag a box to zoom, double-click or Esc to come back out.
