J01236+3002sdB
SDSSJ012340.69+300232.16 · 01:23:40.69 30:02:32.24 · Culpan knownhsd
χ²/N = 1.00
Spectrum
shaded: the intervals the fit used · │ a cancelled pixeldrag on either panel to zoom · dbl-click or Esc to reset · arrows to pan
The whole reduced spectrum above, the region marked on it below. Shaded bands are the intervals the fit used; a tick under the axis marks a pixel the rejection mask cancelled.

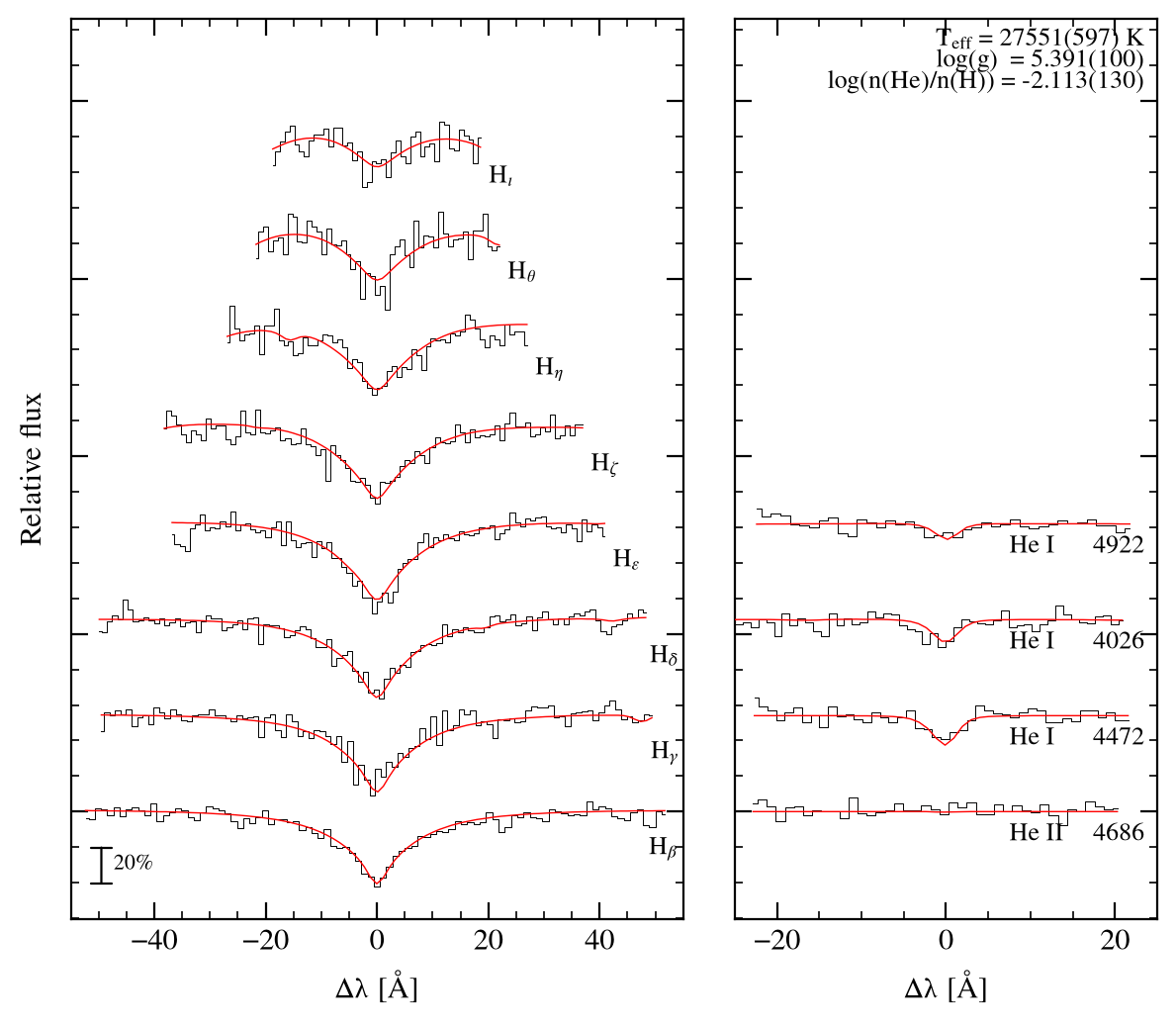

Line-profile fit — Bamberg
Results and provenance
Fit — Bamberg
| Teff [K] | 27551 ± 597 |
| log g | 5.391 ± 0.100 |
| log n(He)/n(H) | -2.113 ± 0.130 |
| reduced χ² | 1.000 over 641 points |
| radial velocity | 105.0 km s−1 |
| resolution (FWHM) | 2.50 Å |
| lines fitted | 12 |
| grids | HE-0.041.fits HE-0.125.fits HE-0.300.fits HE-0.550.fits +9 more |
| fitted | 04/09/2026 18:25:29 |
Fit — Lei (TLUSTY)
| Teff [K] | 29260 ± 340 |
| log g | 5.340 ± 0.050 |
| log n(He)/n(H) | -1.970 ± 0.090 |
| grids | Lei et al. 2019, ApJ 881, 135 SYNSPEC 49 spectra from NLTE TLUSTY 204 model atmospheres, through XTgrid |
Observation
| S/N (classifier) | 59.0 |
| source file | spec-57360-EG012256N315028B01_sp01-132.fits.gz |
Gaia astrometry
| Gaia DR3 source | 309391787394140288 |
| parallax [mas] | 0.3716 ± 0.0692 |
| G | 16.474 |
| Gabs | 4.423 |
| μα [mas/yr] | 5.988 |
| μδ [mas/yr] | -5.003 |
| l, b | 131.189, -32.312 |
Published (Culpan et al. 2022)
| class (Culpan) | sdB |
| class (SIMBAD) | sdB |
| Teff [K] | 31386 ± 257 |
| log g | 5.56 ± 0.06 |
| log y | -2.14 ± 0.06 |
| reference | 2021ApJS..256...28L |
Classifier
AGREES
fitted Teff 31386 logg 5.56 logY -2.14 2021ApJS..256...28L
auto: contrast 0.11, within the 0.30 a subdwarf reaches at 28 kK
Fitted lines
| line | λ [Å] | shift [Å] | continuum at | ±avg | fitted over |
| Hβ | 4861.32 | 1.70 | -40.0, 40.0 | 5.0 | -45.0, 45.0 |
| Hγ | 4340.46 | 1.52 | -40.0, 36.8 | 4.5 | -43.0, 43.0 |
| Hδ | 4101.73 | 1.44 | -40.0, 31.6 | 4.2 | -43.0, 43.0 |
| Hε | 3970.07 | 1.39 | -28.0, 30.0 | 4.1 | -30.0, 35.0 |
| Hζ | 3889.05 | 1.36 | -20.0, 26.2 | 4.0 | -31.8, 32.0 |
| Hη | 3835.38 | 1.34 | -20.0, 14.6 | 4.0 | -20.7, 21.8 |
| Hθ | 3797.90 | 1.33 | -16.0, 16.0 | 3.9 | -15.6, 16.7 |
| Hι | 3770.63 | 1.32 | -13.0, 13.0 | 3.9 | -11.7, 11.6 |
| He II 4686 | 4685.70 | 1.64 | -11.9, 11.9 | 4.9 | -15.0, 13.8 |
| He I 4472 | 4471.60 | 1.57 | -15.0, 15.0 | 4.6 | -15.0, 15.0 |
| He I 4026 | 4026.29 | 1.41 | -24.2, 15.0 | 4.2 | -15.0, 15.0 |
| He I 4922 | 4921.93 | 1.72 | -15.0, 15.0 | 5.1 | -15.0, 15.0 |
