J02320+3334

KUV02290+3321  ·  Culpan knownhsd

χ²/N = 0.99

Spectrum

shaded: the intervals the fit used ·  │ a cancelled pixeldrag on either panel to zoom · dbl-click or Esc to reset · arrows to pan

The whole reduced spectrum above, the region marked on it below. Shaded bands are the intervals the fit used; a tick under the axis marks a pixel the rejection mask cancelled.

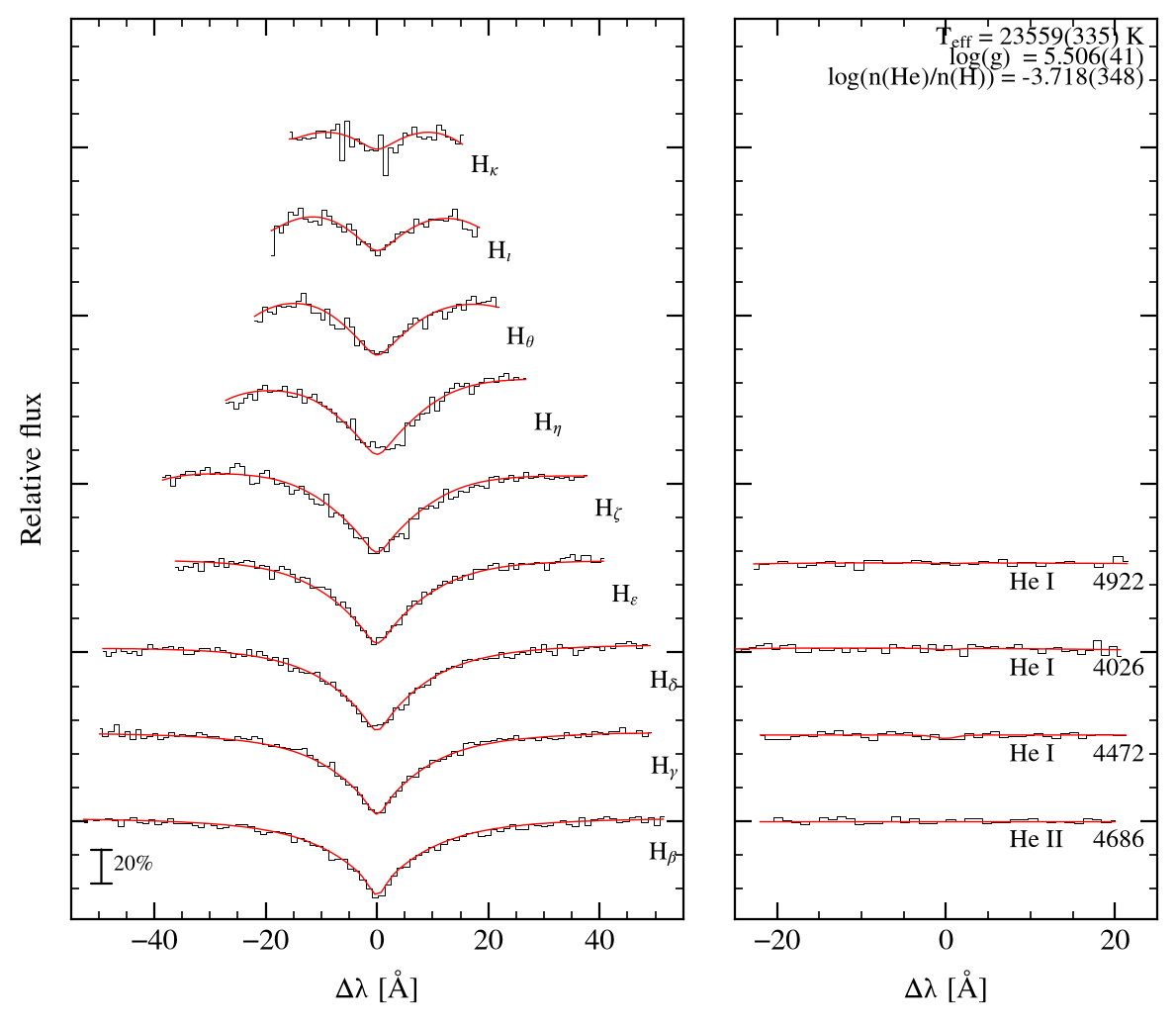

Line-profile fit — Bamberg

profile fit on the Bamberg grid
Observed spectrum in black, model in red, offset by line. Balmer series left, helium right.

Results and provenance

Fit — Bamberg

Teff [K]23559 ± 335
log g5.506 ± 0.041
log n(He)/n(H)-3.718 ± 0.348
reduced χ²0.993 over 659 points
radial velocity-53.0 km s−1
resolution (FWHM)2.50 Å
lines fitted13
gridsHE-0.041.fits
HE-0.125.fits
HE-0.300.fits
HE-0.550.fits
+9 more
fitted04/09/2026 18:25:58

Fit — Lei (TLUSTY)

Teff [K]23720 ± 270
log g5.620 ± 0.030
log n(He)/n(H)-2.800 ± 0.000
gridsLei et al. 2020, ApJ 889, 117
SYNSPEC 49 spectra from NLTE TLUSTY 204 model atmospheres, through XTgrid

Observation

source filespec-58137-HD022353N335128B01_sp06-097.fits.gz

Gaia astrometry

Gaia DR3 source134510477267997952
parallax [mas]0.8358 ± 0.0537
G15.400
Gabs5.077
μα [mas/yr]0.035
μδ [mas/yr]-0.066
l, b145.877, -24.775

Published (Culpan et al. 2022)

class (Culpan)sdB
class (SIMBAD)sdB
Teff [K]24828 ± 285
log g5.62 ± 0.04
log y-3.85 ± 0.22
reference2021ApJS..256...28L

Fitted lines

lineλ [Å]shift [Å]continuum at±avgfitted over
Hβ4861.32-0.86-40.0, 40.05.0-45.0, 45.0
Hγ4340.46-0.77-40.0, 36.84.5-43.0, 43.0
Hδ4101.73-0.73-40.0, 31.64.2-43.0, 43.0
Hε3970.07-0.70-28.0, 30.04.1-30.0, 35.0
Hζ3889.05-0.69-20.0, 26.24.0-31.8, 32.0
Hη3835.38-0.68-20.0, 14.64.0-20.7, 21.8
Hθ3797.90-0.67-16.0, 16.03.9-15.6, 16.7
Hι3770.63-0.67-13.0, 13.03.9-11.7, 11.6
Hκ3750.15-0.66-10.0, 10.03.9-7.4, 8.7
He II 46864685.70-0.83-11.9, 11.94.9-15.0, 13.8
He I 44724471.60-0.79-15.0, 15.04.6-15.0, 15.0
He I 40264026.29-0.71-24.2, 15.04.2-15.0, 15.0
He I 49224921.93-0.87-15.0, 15.05.1-15.0, 15.0
