J08533+1649sdB
PG0850+170 · 08:53:23.66 16:49:35.26 · Culpan knownhsd
χ²/N = 0.96
Spectrum
shaded: the intervals the fit used · │ a cancelled pixeldrag on either panel to zoom · dbl-click or Esc to reset · arrows to pan
The whole reduced spectrum above, the region marked on it below. Shaded bands are the intervals the fit used; a tick under the axis marks a pixel the rejection mask cancelled.

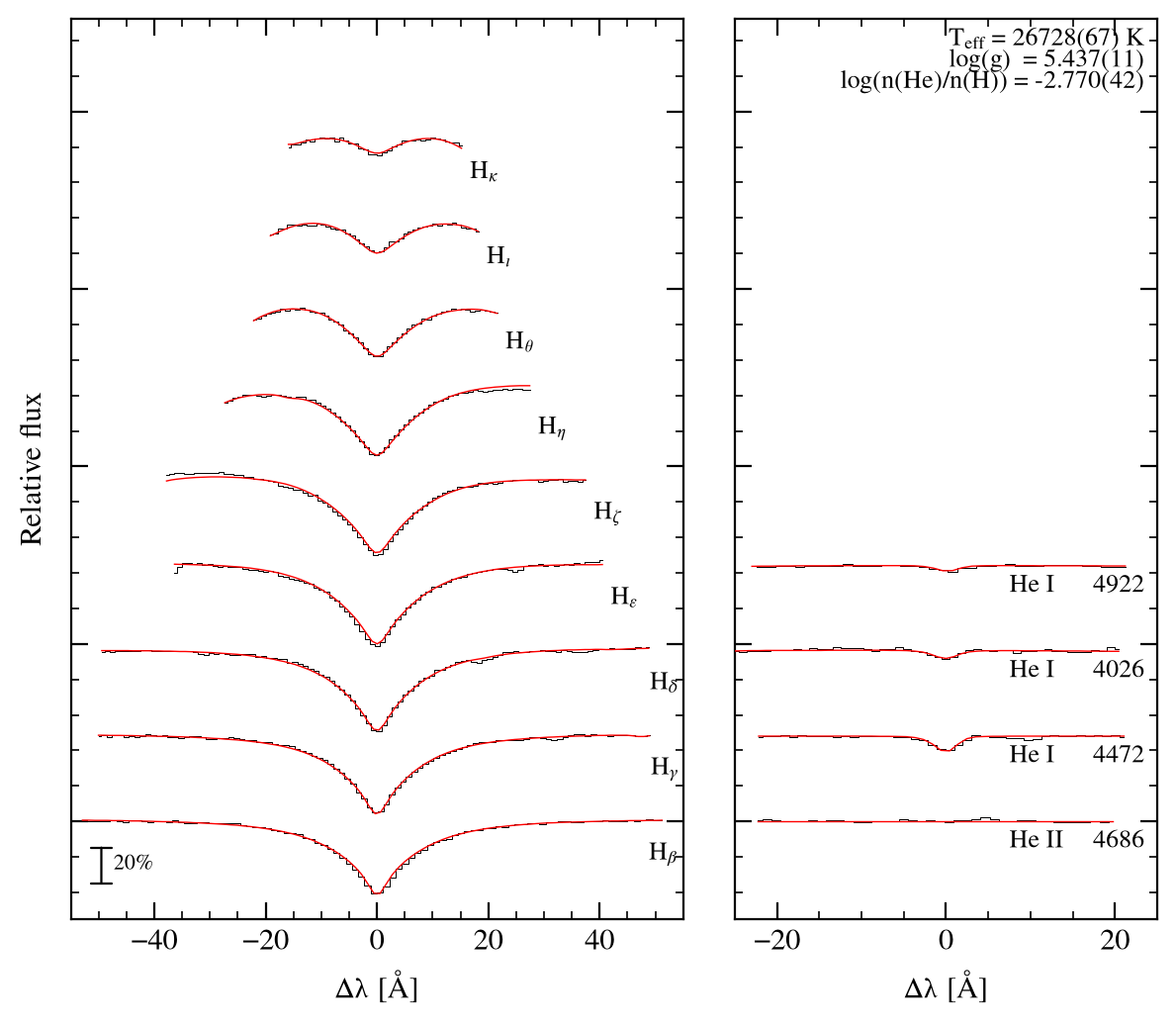

Line-profile fit — Bamberg
Results and provenance
Fit — Bamberg
| Teff [K] | 26728 ± 67 |
| log g | 5.437 ± 0.011 |
| log n(He)/n(H) | -2.770 ± 0.042 |
| reduced χ² | 0.957 over 659 points |
| radial velocity | -135.0 km s−1 |
| resolution (FWHM) | 2.50 Å |
| lines fitted | 13 |
| grids | HE-0.041.fits HE-0.125.fits HE-0.300.fits HE-0.550.fits +9 more |
| fitted | 04/09/2026 18:29:28 |
Fit — Lei (TLUSTY)
| Teff [K] | 27820 ± 210 |
| log g | 5.410 ± 0.030 |
| log n(He)/n(H) | -2.770 ± 0.080 |
| grids | Lei et al. 2018, ApJ 868, 70 SYNSPEC 49 spectra from NLTE TLUSTY 204 model atmospheres, through XTgrid |
Observation
| cosmic rays | 7 pixels cancelled |
| S/N (classifier) | 31.6 |
| source file | spec-58131-K2QSOB01_sp02-145.fits.gz |
Gaia astrometry
| Gaia DR3 source | 611684298790301568 |
| parallax [mas] | 1.2245 ± 0.0467 |
| G | 13.918 |
| Gabs | 4.406 |
| μα [mas/yr] | 3.951 |
| μδ [mas/yr] | -5.031 |
| l, b | 210.420, 34.348 |
Published (Culpan et al. 2022)
| class (Culpan) | sdB+WD |
| class (SIMBAD) | sdB |
| Teff [K] | 27100 ± 1000 |
| log g | 5.37 ± 0.15 |
| log y | -2.20 ± 0.10 |
| reference | 2001MNRAS.326.1391M |
Classifier
AGREES
fitted Teff 27100 logg 5.37 logY -2.2 2001MNRAS.326.1391M
auto: contrast 0.19, within the 0.33 a subdwarf reaches at 26 kK, Mg I b suggests a companion but Ca II does not (-0.2 sigma)
Fitted lines
| line | λ [Å] | shift [Å] | continuum at | ±avg | fitted over |
| Hβ | 4861.32 | -2.19 | -40.0, 40.0 | 5.0 | -45.0, 45.0 |
| Hγ | 4340.46 | -1.95 | -40.0, 36.8 | 4.5 | -43.0, 43.0 |
| Hδ | 4101.73 | -1.85 | -40.0, 31.6 | 4.2 | -43.0, 43.0 |
| Hε | 3970.07 | -1.79 | -28.0, 30.0 | 4.1 | -30.0, 35.0 |
| Hζ | 3889.05 | -1.75 | -20.0, 26.2 | 4.0 | -31.8, 32.0 |
| Hη | 3835.38 | -1.73 | -20.0, 14.6 | 4.0 | -20.7, 21.8 |
| Hθ | 3797.90 | -1.71 | -16.0, 16.0 | 3.9 | -15.6, 16.7 |
| Hι | 3770.63 | -1.70 | -13.0, 13.0 | 3.9 | -11.7, 11.6 |
| Hκ | 3750.15 | -1.69 | -10.0, 10.0 | 3.9 | -7.4, 8.7 |
| He II 4686 | 4685.70 | -2.11 | -11.9, 11.9 | 4.9 | -15.0, 13.8 |
| He I 4472 | 4471.60 | -2.01 | -15.0, 15.0 | 4.6 | -15.0, 15.0 |
| He I 4026 | 4026.29 | -1.81 | -24.2, 15.0 | 4.2 | -15.0, 15.0 |
| He I 4922 | 4921.93 | -2.22 | -15.0, 15.0 | 5.1 | -15.0, 15.0 |
