J11190+2951

PG1116+301  ·  Culpan knownhsd

χ²/N = 1.00

Spectrum

shaded: the intervals the fit used ·  │ a cancelled pixeldrag on either panel to zoom · dbl-click or Esc to reset · arrows to pan

The whole reduced spectrum above, the region marked on it below. Shaded bands are the intervals the fit used; a tick under the axis marks a pixel the rejection mask cancelled.

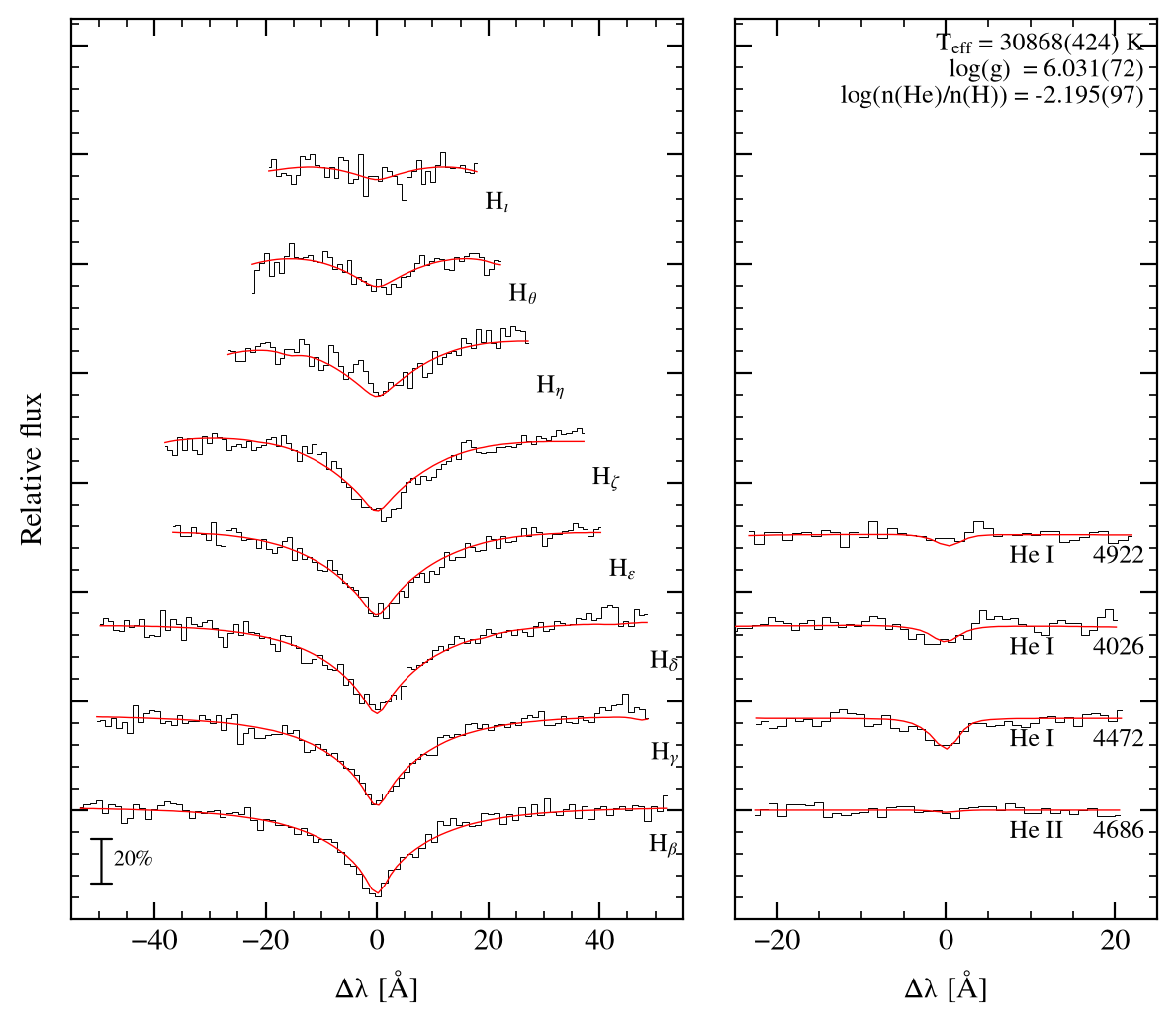

Line-profile fit — Bamberg

profile fit on the Bamberg grid
Observed spectrum in black, model in red, offset by line. Balmer series left, helium right.

Results and provenance

Fit — Bamberg

Teff [K]30868 ± 424
log g6.031 ± 0.072
log n(He)/n(H)-2.195 ± 0.097
reduced χ²0.998 over 639 points
radial velocity-88.0 km s−1
resolution (FWHM)2.50 Å
lines fitted12
gridsHE-0.041.fits
HE-0.125.fits
HE-0.300.fits
HE-0.550.fits
+9 more
fitted04/09/2026 18:30:21

Fit — Lei (TLUSTY)

Teff [K]31520 ± 340
log g6.190 ± 0.070
log n(He)/n(H)-2.330 ± 0.170
gridsLei et al. 2019, ApJ 881, 135
SYNSPEC 49 spectra from NLTE TLUSTY 204 model atmospheres, through XTgrid

Observation

source filespec-55938-B5593805_sp11-095.fits.gz

Gaia astrometry

Gaia DR3 source4023163971460301952
parallax [mas]1.1928 ± 0.0398
G14.286
Gabs4.704
μα [mas/yr]-14.743
μδ [mas/yr]-12.130
l, b199.788, 69.559

Published (Culpan et al. 2022)

class (Culpan)sdB+WD
class (SIMBAD)sdB
Teff [K]32500 ± 900
log g5.85 ± 0.10
log y-2.20 ± 0.10
reference2001MNRAS.326.1391M

Fitted lines

lineλ [Å]shift [Å]continuum at±avgfitted over
Hβ4861.32-1.43-40.0, 40.05.0-45.0, 45.0
Hγ4340.46-1.27-40.0, 36.84.5-43.0, 43.0
Hδ4101.73-1.20-40.0, 31.64.2-43.0, 43.0
Hε3970.07-1.17-28.0, 30.04.1-30.0, 35.0
Hζ3889.05-1.14-20.0, 26.24.0-31.8, 32.0
Hη3835.38-1.13-20.0, 14.64.0-20.7, 21.8
Hθ3797.90-1.11-16.0, 16.03.9-15.6, 16.7
Hι3770.63-1.11-13.0, 13.03.9-11.7, 11.6
He II 46864685.70-1.38-11.9, 11.94.9-15.0, 13.8
He I 44724471.60-1.31-15.0, 15.04.6-15.0, 15.0
He I 40264026.29-1.18-24.2, 15.04.2-15.0, 15.0
He I 49224921.93-1.44-15.0, 15.05.1-15.0, 15.0
