J17530+2435

SDSSJ175304.81+243546.3  ·  Culpan knownhsd

χ²/N = 0.98

Spectrum

shaded: the intervals the fit used ·  │ a cancelled pixeldrag on either panel to zoom · dbl-click or Esc to reset · arrows to pan

The whole reduced spectrum above, the region marked on it below. Shaded bands are the intervals the fit used; a tick under the axis marks a pixel the rejection mask cancelled.

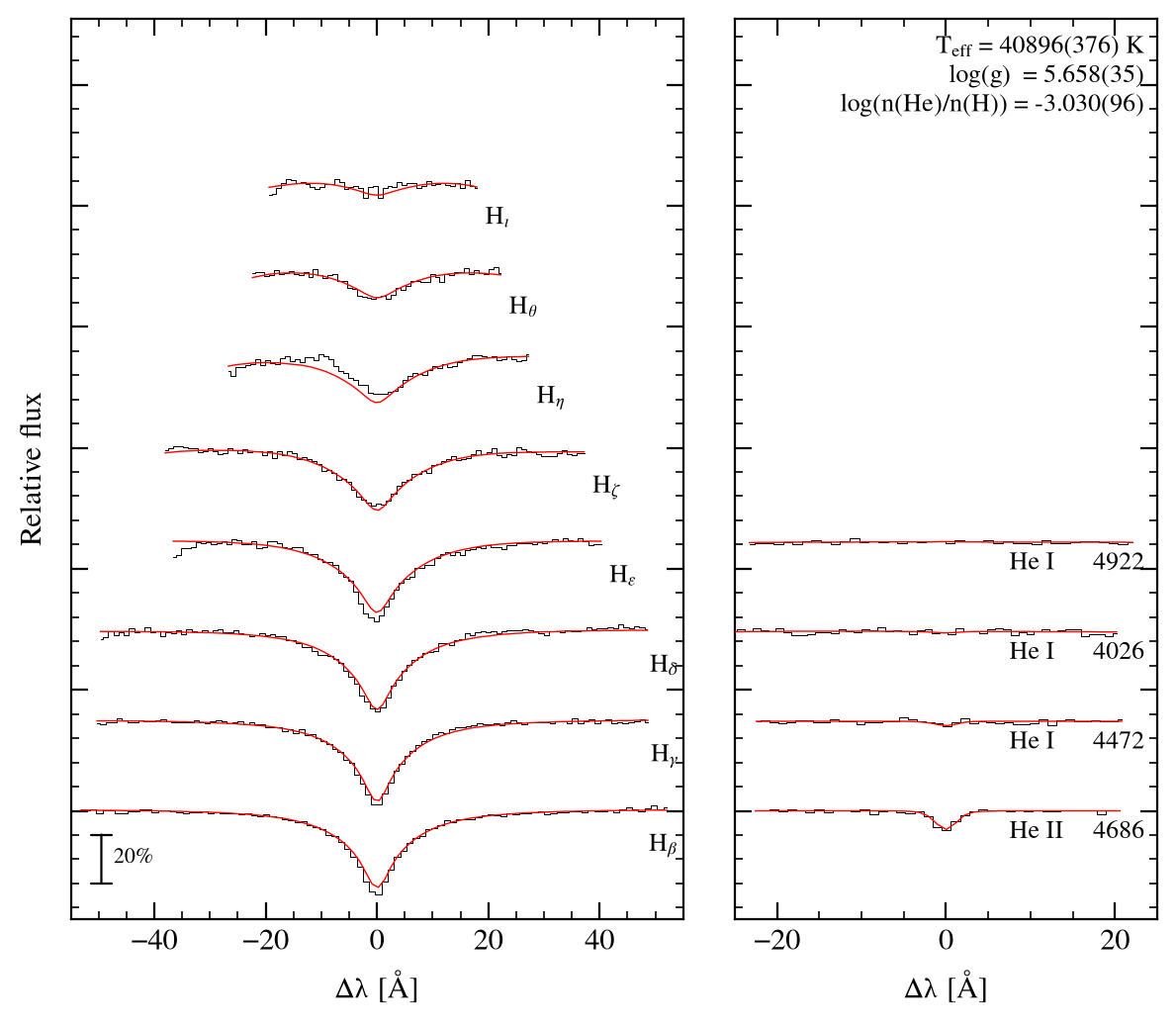

Line-profile fit — Bamberg

profile fit on the Bamberg grid
Observed spectrum in black, model in red, offset by line. Balmer series left, helium right.

Results and provenance

Fit — Bamberg

Teff [K]40896 ± 376
log g5.658 ± 0.035
log n(He)/n(H)-3.030 ± 0.097
reduced χ²0.981 over 636 points
radial velocity-84.0 km s−1
resolution (FWHM)2.50 Å
lines fitted12
gridsHE-0.041.fits
HE-0.125.fits
HE-0.300.fits
HE-0.550.fits
+9 more
fitted04/09/2026 18:32:45

Fit — Lei (TLUSTY)

Teff [K]37320 ± 540
log g5.400 ± 0.050
log n(He)/n(H)-3.070 ± 0.260
gridsLei et al. 2018, ApJ 868, 70
SYNSPEC 49 spectra from NLTE TLUSTY 204 model atmospheres, through XTgrid

Observation

source filespec-59732-HD174640N254456B02_sp07-124.fits.gz

Gaia astrometry

Gaia DR3 source4581048921494269056
parallax [mas]0.6040 ± 0.0310
G14.599
Gabs3.539
μα [mas/yr]-2.281
μδ [mas/yr]-10.062
l, b49.751, 23.180

Published (Culpan et al. 2022)

class (Culpan)sdOB
Teff [K]37414 ± 376
log g5.42 ± 0.06
log y-3.17 ± 0.22
reference2021ApJS..256...28L

Fitted lines

lineλ [Å]shift [Å]continuum at±avgfitted over
Hβ4861.32-1.36-40.0, 40.05.0-45.0, 45.0
Hγ4340.46-1.22-40.0, 36.84.5-43.0, 43.0
Hδ4101.73-1.15-40.0, 31.64.2-43.0, 43.0
Hε3970.07-1.11-28.0, 30.04.1-30.0, 35.0
Hζ3889.05-1.09-20.0, 26.24.0-31.8, 32.0
Hη3835.38-1.07-20.0, 14.64.0-20.7, 21.8
Hθ3797.90-1.06-16.0, 16.03.9-15.6, 16.7
Hι3770.63-1.06-13.0, 13.03.9-11.7, 11.6
He II 46864685.70-1.31-11.9, 11.94.9-15.0, 13.8
He I 44724471.60-1.25-15.0, 15.04.6-15.0, 15.0
He I 40264026.29-1.13-24.2, 15.04.2-15.0, 15.0
He I 49224921.93-1.38-15.0, 15.05.1-15.0, 15.0
