J19519+4607

KIC9543660 · Culpan knownhsd

χ²/N = 0.99

Spectrum

shaded: the intervals the fit used · │ a cancelled pixeldrag on either panel to zoom · dbl-click or Esc to reset · arrows to pan

The whole reduced spectrum above, the region marked on it below. Shaded bands are the intervals the fit used; a tick under the axis marks a pixel the rejection mask cancelled.

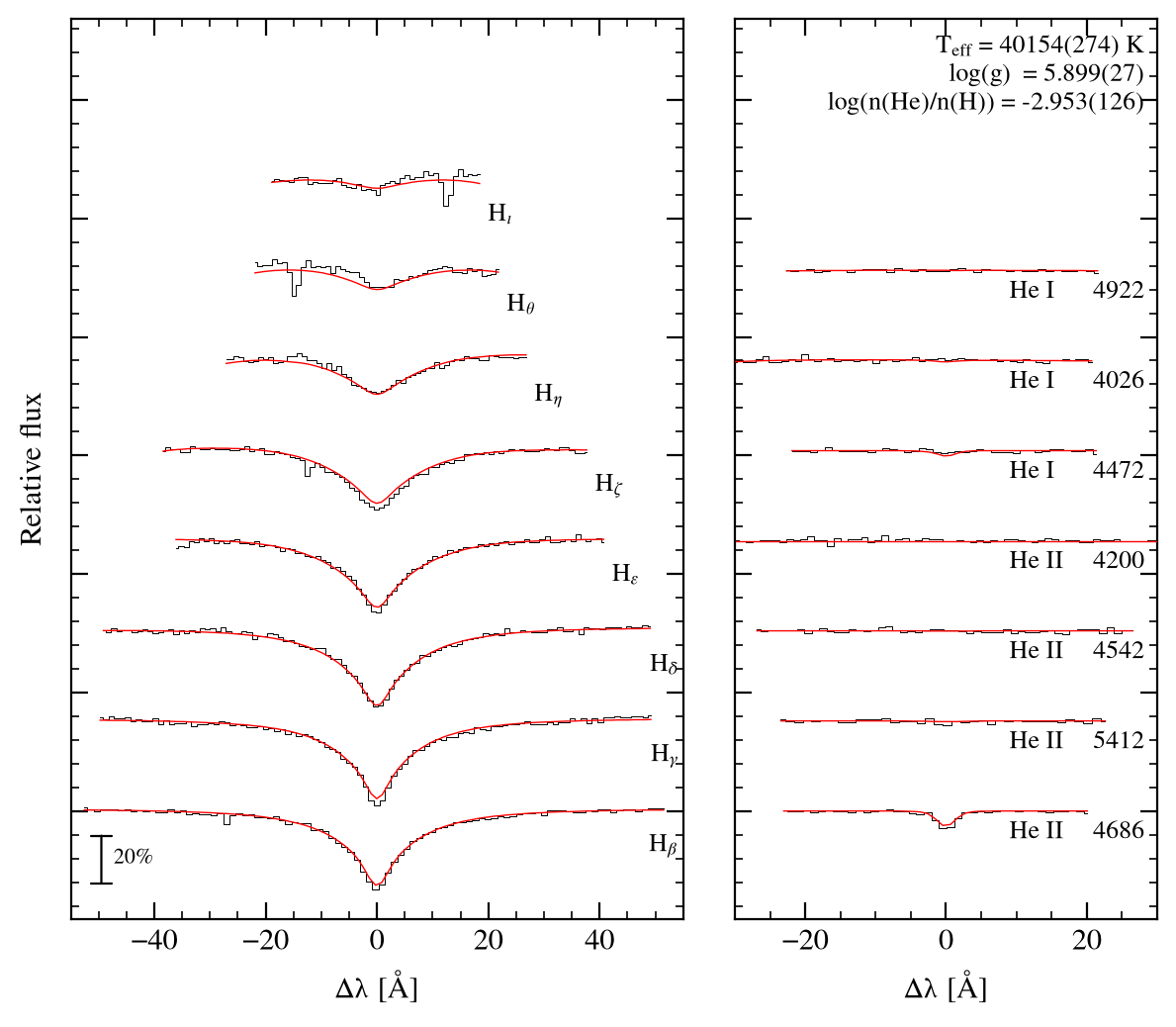

Line-profile fit — Bamberg

Observed spectrum in black, model in red, offset by line. Balmer series left, helium right.

Results and provenance

Fit — Bamberg

T_eff [K]	40154 ± 274
log g	5.899 ± 0.027
log n(He)/n(H)	-2.953 ± 0.127
reduced χ²	0.988 over 744 points
radial velocity	22.0 km s⁻¹
resolution (FWHM)	2.50 Å
lines fitted	15
grids	HE-0.041.fits HE-0.125.fits HE-0.300.fits HE-0.550.fits +9 more
fitted	04/09/2026 18:33:09

Fit — Lei (TLUSTY)

T_eff [K]	39380 ± 420
log g	5.510 ± 0.030
log n(He)/n(H)	-3.270 ± 0.510
grids	Lei et al. 2018, ApJ 868, 70 SYNSPEC 49 spectra from NLTE TLUSTY 204 model atmospheres, through XTgrid

Observation

source file

spec-57299-KP195920N454621V05_sp03-121.fits.gz

Gaia astrometry

Gaia DR3 source	2079522048319286528
parallax [mas]	1.2321 ± 0.0239
G	13.610
G_abs	4.080
μ_α [mas/yr]	-8.057
μ_δ [mas/yr]	-20.000
l, b	80.195, 9.660

Published (Culpan et al. 2022)

class (Culpan)	sdOB
class (SIMBAD)	sdOB
T_eff [K]	38592 ± 137
log g	5.85 ± 0.02
log y	-3.30 ± 0.08
reference	2021ApJS..256...28L

Fitted lines

line	λ [Å]	shift [Å]	continuum at	±avg	fitted over
H_β	4861.32	0.36	-40.0, 40.0	5.0	-45.0, 45.0
H_γ	4340.46	0.32	-40.0, 36.8	4.5	-43.0, 43.0
H_δ	4101.73	0.30	-40.0, 31.6	4.2	-43.0, 43.0
H_ε	3970.07	0.29	-28.0, 30.0	4.1	-30.0, 35.0
H_ζ	3889.05	0.29	-20.0, 26.2	4.0	-31.8, 32.0
H_η	3835.38	0.28	-20.0, 14.6	4.0	-20.7, 21.8
H_θ	3797.90	0.28	-16.0, 16.0	3.9	-15.6, 16.7
H_ι	3770.63	0.28	-13.0, 13.0	3.9	-11.7, 11.6
He II 4686	4685.70	0.34	-11.9, 11.9	4.9	-15.0, 13.8
He II 5412	5411.52	0.40	-15.0, 15.0	5.6	-15.0, 15.0
He II 4542	4541.59	0.33	-15.0, 20.0	4.7	-20.0, 20.0
He II 4200	4199.84	0.31	-23.5, 33.8	4.3	-20.0, 20.0
He I 4472	4471.60	0.33	-15.0, 15.0	4.6	-15.0, 15.0
He I 4026	4026.29	0.30	-24.2, 15.0	4.2	-15.0, 15.0
He I 4922	4921.93	0.36	-15.0, 15.0	5.1	-15.0, 15.0
